APM 2.6 +NEO-M8N Flight Controller GPS Module with Shell for APM 2.6 2.5 with UBEC

The ArduPilot Mega 2.6 is a complete open source autopilot system and the bestselling technology that won the prestigious 2012 Outback Challenge UAV competition.

This version is ready to use, with no assembly required.

It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints.

This revision of the board has no onboard compass,

which is designed for vehicles (especially multicopters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference.

(On fixed wing aircraft its often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference,

so this is not as critical, but APM 2.6 gives more flexibility in that positioning and is a good choice for them, too).

This is designed to be used with the 3DR uBlox GPS with Compass (see option below), so that the GPS/Compass unit can be mounted further from noise sources than APM itself.

APM 2.6 requires a GPS unit and external compass for full autonomy. Choose your compass from options menu at right.

Description:
- WIth GPS folding antenna base
- Ublox new generation GPS NEO-M8N is very quick to searching signal, of high positioning precision and efficiency.
- This NEO-M8N GPS adopts original imported M8N chip, function module group is optimized, built in electric compass, updating rate has been improved to 10GHZ
- Support European, Russian GLONASS, Japan , China
- Module supports GPS++SBAS or GPS+GLONASS+SBAS

Specification:
- Receiver type 72-channel u-blox M8 engine
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Concurrent GNSS: up to 10 Hz
- Position accuracy2 2.0 m CEP
- Acquisition2 Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
- Sensitivity2 Tracking & Nav: -167 dBm
- Cold starts: -148 dBm
- Hot starts: -156 dBm
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)3
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti jamming Active CW detection and removal. Extra
- onboard SAW band pass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
- Operating temp. -40° C to 85° C
- Storage temp. -40° C to 85° C (NEO-M8N/Q)
- -40° C to 105° C (NEO-M8M)
- RoHS compliant (lead-free)
- Qualification according to ISO 16750
- Manufactured and fully tested in ISO/TS 16949 certified production sites
- Uses u-blox M8 chips qualified according to AEC-Q100
- Supply voltage 1.65 V to 3.6 V (NEO-M8M)
- 2.7 V to 3.6 V (NEO-M8N/Q)
- Power consumption4 23 mA @ 3.0 V (continuous)
- 5 mA @ 3.0 V Power Save Mode
- (1 Hz, GPS mode only)
- Backup Supply 1.4 to 3.6 V
- NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
- TCXO, flash, SAW, LNA,
- Timepulse Configurable 0.25 Hz to 10 MHz

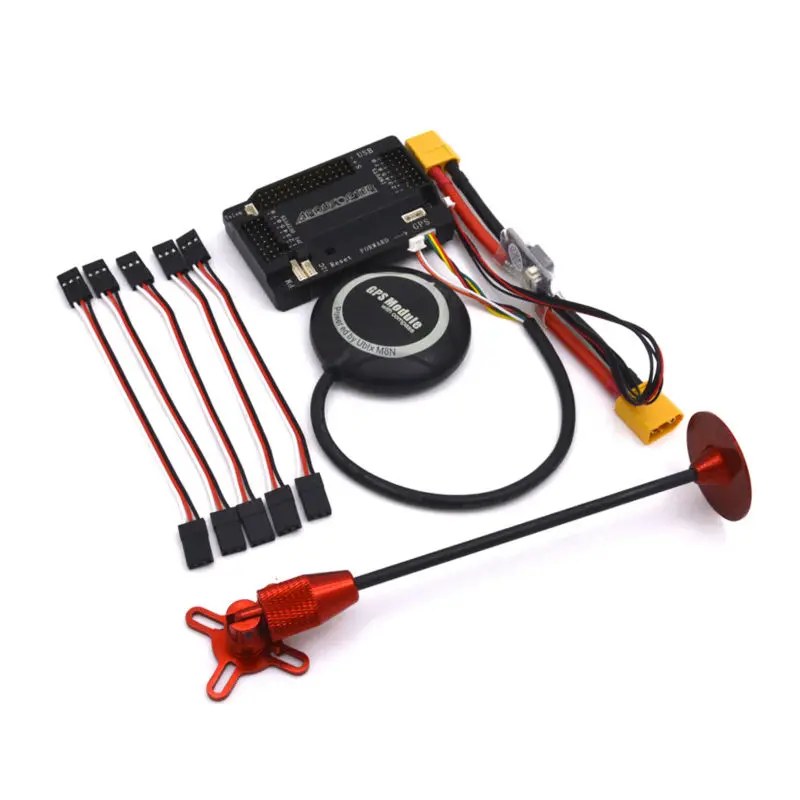

Package Including:

APM 2.6 main board with Shell x1

M8NGPS built-in compass X 1

GPS shell X 1

GPS Red Holder X 1

APM Current and Voltage Power Module with BEC X 1
