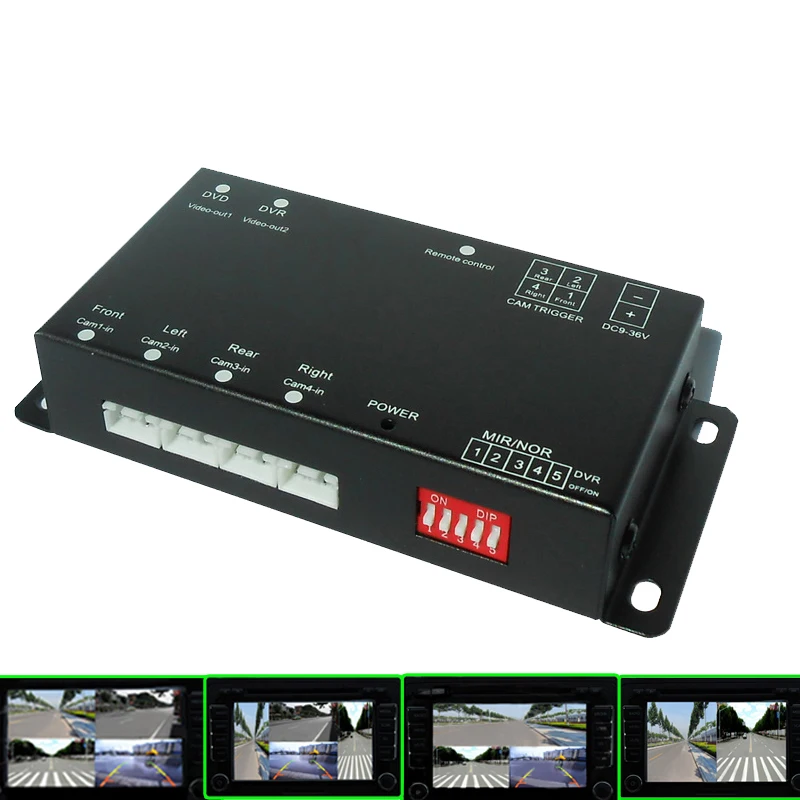

Car Camera Best Choice Collections provide smart camera,car camera,front camera,camera recorder Hot Promotion Car four Cameras Image combiner Switch for Front/Rear/Left/Right View Parking Camera 4 Video Split Control Box Video support DVR. Get Discount Now! Only US $50.82/piece at this time. Hurry buy Now before back to normal price! Normal price US $77.00 or you can Check price now. Dont waste your time. Buy Now only in HUIMU Trusted Seller Store!
Economical price as well as cost-free delivery. Let's get Limited Hot Promotion Car four Cameras Image combiner Switch for Front/Rear/Left/Right View Parking Camera 4 Video Split Control Box Video support DVR prior to prices rise.
If it will just sabotage your job and will certainly not give you the kind of top quality that you require in the goods, you do not need less expensive goods. With the greater price you could be certain that your money is worth costs in this Flash Deal Hot Promotion Car four Cameras Image combiner Switch for Front/Rear/Left/Right View Parking Camera 4 Video Split Control Box Video support DVR item...New Product
Associated with camera
Kindly Notes:we dont surggest the switch will be connect wireless camera,and all product can support PAL or NTSC
,but dont support PAL and NTSC at the same time.
There are two sytles four way combine switch , four way switch can connect DVR
please read the detail descriptions
1:st303 intelligent and energy conservatin Quad system
First of all, thank you very much for using our parking system!
important tips:
Custom settings method
Set the dial switch different state (corresponding to different functions of memory), then press the line key at the same time to power on, power after about 2 seconds can loosen the line key, select thedisplay mode, then you can set off memory function. The following is kinds of description:
1. dial switch 5 on the top, 1-4 in the bottom, set the boot screen for 田 mode.
2. dial switch 1,3 on the top, other dial switch in the bottom, set the left and right trigger line can be directly switched on and triggered, exit 3 seconds off.
3. dial switch 1,4 on the top, and other dial in the bottom , set the button defined as short press open screen, remember the current screen mode (please use remote control screen mode), again short to standby.
Set the triggered display mode:
4. dial switch 1 in the top, 2-5 below, set 1 trigger line trigger display mode. (please use the remote control to switch the multi screen mode you need. After the power failure, the trigger line 1 will display the current picture mode.)
5. dial switch 2 on, 1,3-5 below, set 2 trigger line trigger display mode. (please use the remote control to switch the multi screen mode you need. After the power failure, the trigger line 2 will display the current picture mode.)
6. dial switch 3 on, 1-2,4-5 below, set 3 trigger line trigger display mode. (please use the remote control to switch the multi screen mode you need. After the power failure, the trigger line 3 will display the current picture mode.)
7. dial switch 4 on the top, 1-3, 5 in the lower, set 4 trigger line trigger display mode. (please use the remote control to switch the multi screen mode you need. After the power failure, the trigger line 4 will display the current picture mode.)
Set the line key, touch switch, short press display mode:
Line key, touch switch, short press, toggle, CH1, CH2, CH3, CH4, and 田 picture loops (such as no video, skip directly)
8. dial switch 1 in the bottom, 2-5 in the upper, set short press first picture mode. (in this case, please use the remote control to switch the screen mode you need. After the power is switched off, the switch is short, and the mode will be displayed for the first time. If ch1 does not have video, this mode will skip directly)
9. dial switch 2 in the bottom, 1,3-5 in the upper, set short press second picture mode. (in this case, please use the remote control to switch the screen mode you need. After the power is switched off, the switch is short, and the mode will be displayed for the first time. If ch2 does not have video, this mode will skip directly)
10. dial switch 3 in the bottom, 1-2,4-5 in the upper, set short press third picture mode. (in this case, please use the remote control to switch the screen mode you need. After the power is switched off, the switch is short, and the mode will be displayed for the first time. If ch3 does not have video, this mode will skip directly)
11. dial switch 4 in the bottom, 1-3,5 in the upper, set short press fourth picture mode. (in this case, please use the remote control to switch the screen mode you need. After the power is switched off, the switch is short, and the mode will be displayed for the first time. If ch4 does not have video, this mode will skip directly)
12. dial switch 5 in the bottom, 1-4 in the top, set a short press fifth display screen mode. (in this case, use the remote control to switch the picture mode you need. After the power is switched off, the touch switch is short, fifth times will show this mode)
How to erase memory patterns
13 Dial the switch 1-5 below, clear all memory modes, and restore the standard function.
Features
Quad intelligent parking system for your car blind spot image perspective, for your safe driving escort. Enjoy
driving, driving without a blind spot to experience the feeling of no dead ends.
This high-end car parking system combined with the owners driving habits developed a cost-effective
automotive safety products more suited to the owners use.
This parking system is based on road conditions the drivers operating habits, manual and automatic control of
the video analysis is displayed.
<Safety Tips>
1. This product is only driving assistance system, you concentrate on safe driving.
2. Before using this product, please read the detailed instructions.
3. car in the fast driving, the proposed closure of this product, concentrating observe road conditions.
4. Please consciously abide by traffic laws and regulations relevant to the country.
<The role and function of parking system>
★Quad intelligent parking system installation does not destroy the original car circuit, will not affect the safety
car circuit, does not affect the vehicle warranty 4S shop situation.
★ This product has a front, left side, as the right side, rear four functions, the driver can according to the
required driving environment, monitoring the situation around the car; two with automatic and manual control
mode, when the factory default automatic mode.
Ⅰ.Description
(1) Power Led, Power, the lights lit, when the voltage is lower than 9v, the power light flashes; when the system
enters standby mode, the power light flashes. This product is the normal input voltage of 12 / 24V.
(2) trigger line and manual keys can select the image in any way 4-way camera
(3)In Trigger state, hand the keys effectively. When you press the manual key "Quad" of or button,
the trigger is invalid, Undo "QUAD" trigger to be effective
(4) After triggering undo, image delay three seconds, and enters the standby state.
(5) the trigger condition, no priority, when the trigger line when more than two trigger, then the trigger line
corresponding channel full-screen image, only three seconds, and then jumps automatically split image screen.
(6) can connect up to four cameras, and automatically split video screen
(7) car camera powered by the device for easy wiring
(8) DVD display device triggered by a switch, wiring and display convenience
(9) Each image can be set to forward / mirroring respectively, RCA connectors can be configured to connect
DVR / VCD
Ⅱ.the screen mode
★Auto Mode introduces :( numbers represent the corresponding camera channel number, the channel
number is not shown)
(1)
Quad mode, automatically shut down after a delay of 5 seconds.
(2)
automatically displays three Split mode, automatically shut down after a delay of 5 seconds.
(3)
automatically displays Dual split mode, automatically shut down after a delay of 5 seconds.
(4)
shutdown of the exit delay 3 seconds.
(5)
seconds after the resumption of the automatic segmentation of video images.
(6)
3 seconds to return to automatic segmentation of video images.
(7)
after hanging reverse gear delayed for 3 seconds,
★Manual mode introduced:
When turned off, tap
★ Host box with high integration technology, four cameras centralized power supply box by the host, thereby
greatly reducing the tedious wiring during installation, in addition to four cameras captured the image signal
after the hosts converted by a video cable and the navigation DVD of "AV" port connection
Ⅲ.Button remote Features:
