Car Camera Best Choice Collections provide driving camera,dashboard camera,camera monitor Fantastic New DIYKIT 2 x 4pin Night Vision Rear View Camera Car Camera + DC 12V-24V 7 inch TFT LCD Car Monitor System for Bus Houseboat Truck. Get Discount Now! Only US $83.65/piece at this time. Hurry buy Now before back to normal price! Normal price US $88.99 or you can Check price now. Dont waste your time. Buy Now only in DIYKIT Official Store Trusted Seller Store!

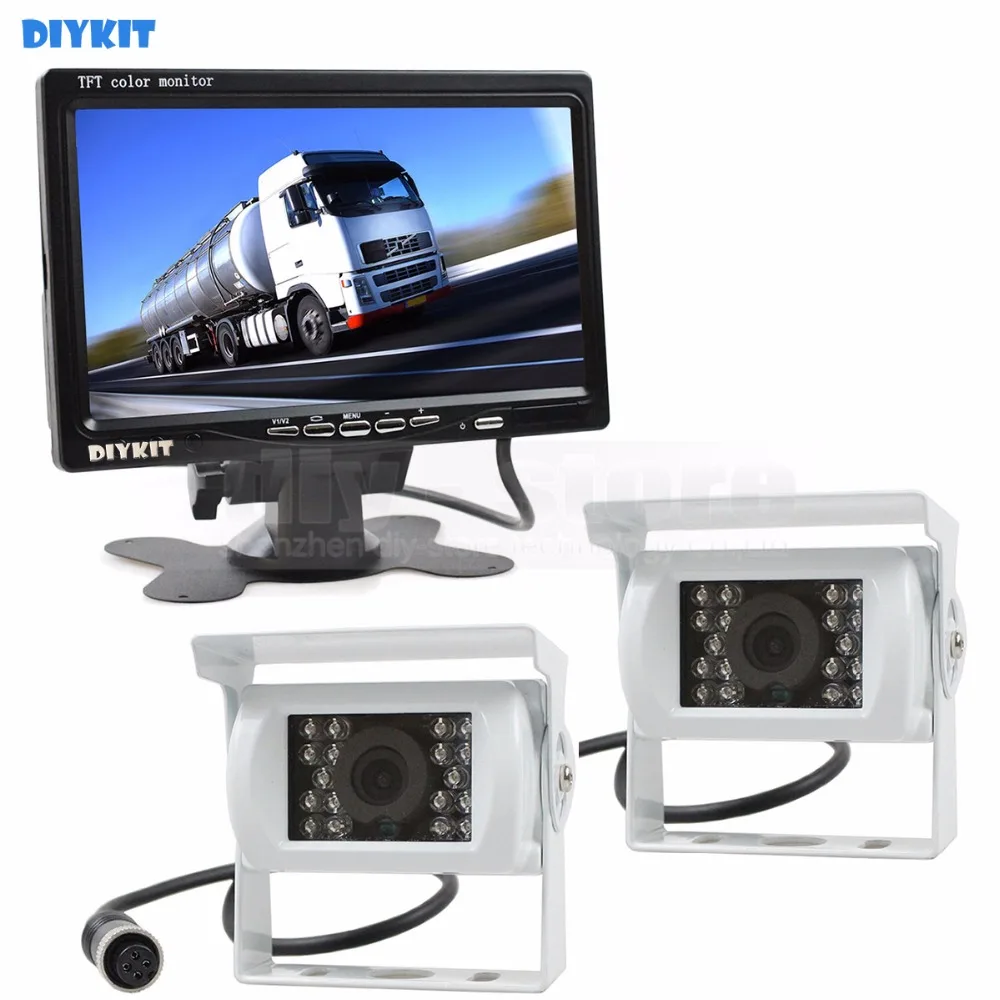

DC 12V-24V 7 inch TFT LCD Car Monitor
4pin IR Night Vision CCD Rear View Camera For Bus Houseboat Truck
12V-24V 7" 4-Pin Connector TFT LCD Monitor
+ 2 x 5m/10m/15m/20m 4-Pin Waterproof Shield Cable
+ 2 x Waterproof IR CCD Camera
+ Remote Control
7 inch TFT LCD Display Rear View Car Monitor 2 Video Input
Here is a 7 inches Screen monitor with resolution of 800 x 480, with both headrest style installation and bracket installation. Take with two video input and one audio input , can connedt with Rear View Cameras and Surveillance cameras.
- 7 inches wide view angle 16:9 display mode,
- Adjustable image brightness / color / contrast,
- Switch display mode by remote control,
- Display screen view angle 15º manual adjustment,
- Headrest style installation and bracket installation,
- Car backing backsight function, automatic image switch to right or left,
- Video signal disappear, display blue screen,
- Card style remote control
for Trucks/ Caravans/ Buses/ Motorhome/ Horse Trailer
Complete solution deals with both power and singal transmission. No power cable is needed to connect camera.
The CCD image sensor outputs digital signals that has better pictures clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the clear view at all time.
- Latest style camera with aluminium shell, shorkproof: 10G
- 18 infrared lamp used in low light condition
- You can easily adjust the angle of Multi-level adjust
- Diagonal Angle 120 º, Horizontal Angle 90º , 100% complete waterproof
- Top quality camera. Easy and safe to mount
The difference between CCD and CMOS camera:
- CCD lens Makes clear night vision even in a low light environment.
- 120 degree angle lens, ensure cars rear side for effective reversing and parking operatio
NOTE: We send 2 x mirror image camera as default, please inform us if you need non-mirror image camera.
The advantages of 4-pin connector cable: One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire can shield vehicles circuit interference better than normal AV cables.- One cable can solve the power supply and signal transmission,
- Using pure copper casting have stronger signal shielding and transmission function than normal AV cables,
- Can be connected directly at the same time multiple cables working together without other connection head.
Specifications:
| Screen | Size | 7 inch |
| System | PAL/NTSC(Auto) | |
| Definition | 800(H) x 480(V) | |
| Nominal voltage | DC12V-24V | |
| Power consumption | 6W MAX | |
| Way of control | The button and remote control | |
| Channel of video input | 2 channel | |
| Brightness | 250cd/m⊃2; | |
| Contrast | 300:1 | |
| Camera | Sensor | 1/4 CCD |
| Lens | 2.8mm | |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 420 TV Lines | |
| Pixel | PAL:500(H)x582(V)NTSC:510(H)x492(V) | |
| Frequency | PAL:50Hz NTSC:60Hz | |
| S/N Ratio | 48db(AGC OFF) | |
| Minimum illumination | 0.8LUX/F1.2 | |
| White balance | Auto | |
| Gain control(AGC) | Auto | |
| Power supply | DC12V-24V | |
| Weatherproof Grade | IP67 |
Packing list:
