Wonderful Clearance Podofo 3 in1 Wireless Car Reverse Backup Camera Radar Detector System 4.3" LCD Rearview Monitor For Vehicle

Wonderful Clearance Podofo 3 in1 Wireless Car Reverse Backup Camera Radar Detector System 4.3" LCD Rearview Monitor For Vehicle Rating: 4.1 out of 5

Car Camera Best Choice Collections provide driving camera,dashboard camera,camera monitor,camera recorder,smart camera Wonderful Clearance Podofo 3 in1 Wireless Car Reverse Backup Camera Radar Detector System 4.3" LCD Rearview Monitor For Vehicle. Price at this time US $47.98/piece. Check price now to get discount! Dont waste your time. Buy Now only in podofo Franchised Store Trusted Seller Store!
Podofo 3 in1 Wireless Car Reverse Backup Camera Radar Detector System 4.3" LCD Rearview Monitor For Vehicle

Latest & Popular 4.3" TFT LCD Monitor + Night Vision Radars 2.4GHz Wireless Camera (Transmitter + Receiver).
A simple solution for car reverse system.
Waterproof IR camera with wide view angle, 4.3" high quality ultra-thin monitor, 2 channel video inputs, Easy installation. This kit is used for 12V vehicle.
When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it will switch off automatically.

Monitor Features:

Screen Size: 4.3 inch, 95x55mm
Resolution: 480(H) x RGB x 272(V)
Model: PAL/NTSC
Power Supply: DC 12V
Power Consumption: 2W
2-channel video input: V1/V2 auto switching
Dimensions: 125mm(L) x 111mm(W) x 24mm(H)

Radar Detector Rear Camera Features:
PC6070CMOS chip high-definition image
High-performance radar sensor to accurately measure the obstacle distance
Heartbeat BIBI buzzer alarm
The reverse video and obstacle distance data simultaneously displayed on the monitor, allowe you to accurately grasp the car situation.
Low illumination camera, excellent night vision waterproof effect
When the car into reverse gear, reversing lamp lights up, automatic startup radar system.
When a vehicle enters 2 meters distance obstacle, video radar system indicating the start of the obstacle distance.
When a vehicle enters 1.2 meters distance obstacle, buzzer start alarm.

Parameter:
Camera Angle:170 Degree
Supply voltage: DC 12V±2V
Working current: 90mA
Maximum power dissipation: 50mW
Detectable range: 0.3-2.0 meters
Pixel: 720×576
The minimum illumination: 0.5 LUX
Resolution : 520TV lines
TV system: NTSC
Alarm volume: 85-105dB
Working temperature: -30~80

Transmitter Wireless Receiver Feature:
Wireless 2.4GHz transmitter/receiver set (12V)
Power: 17dbm / 50mW transmitter Operating voltage: DC = 12V video
Video stystem: PAL / NTSC composite video signal transmission
Operating temperature:-40 Degree + 80 Degree
Signal reception sensitivity: -90dbm
The entire operating current: DC = 12V200MA

How to use it :

Take out your stock license plate light at the back of your car

Fix the camera to where the stock license plate light was

Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power

Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative

Connect the wireless module (receiver) to your car monitor - yellow plug for AV input

Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative

You will see the images when your car is in reverse shift

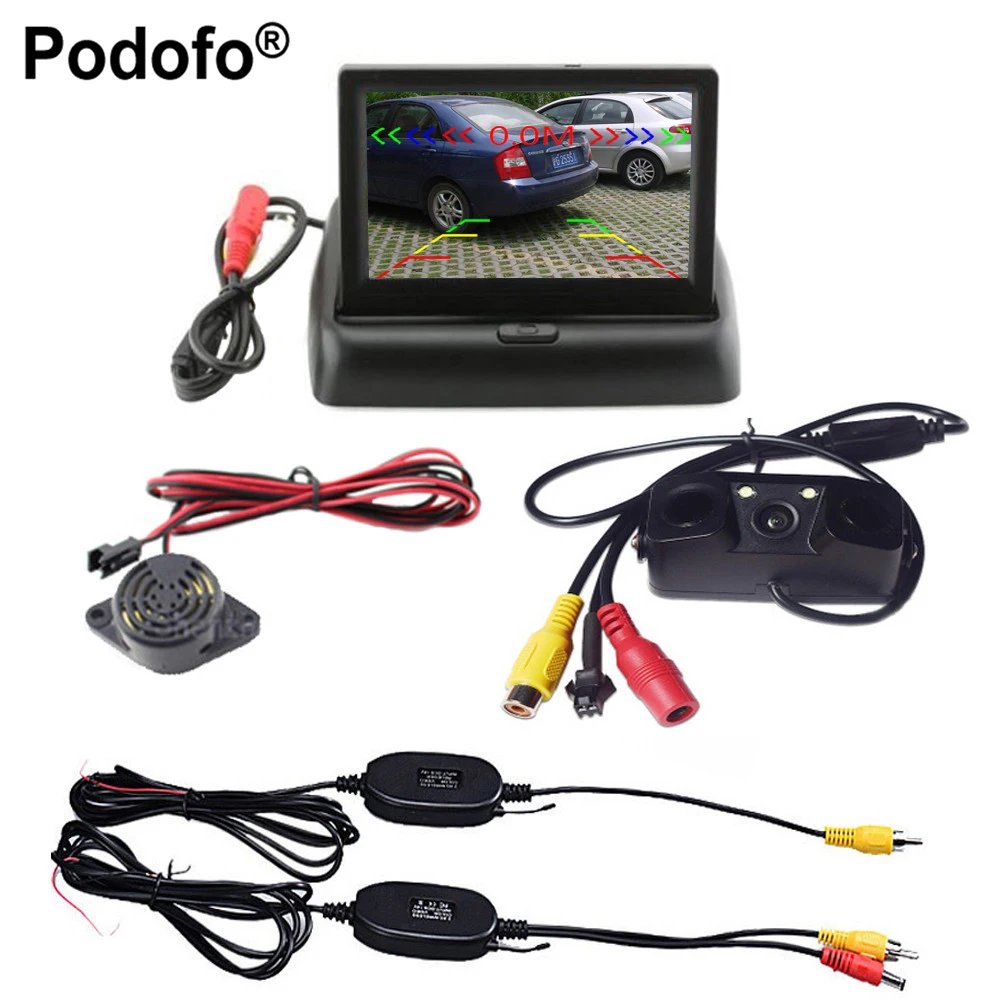

Package included:

  • 1 x 4.3 Inch foldable monitor
  • 1 x 2.4G Transmitter
  • 1 x 2.4G Receiver
  • 1 x Radar Detector Rear Camera
  • 1 x Instructions
