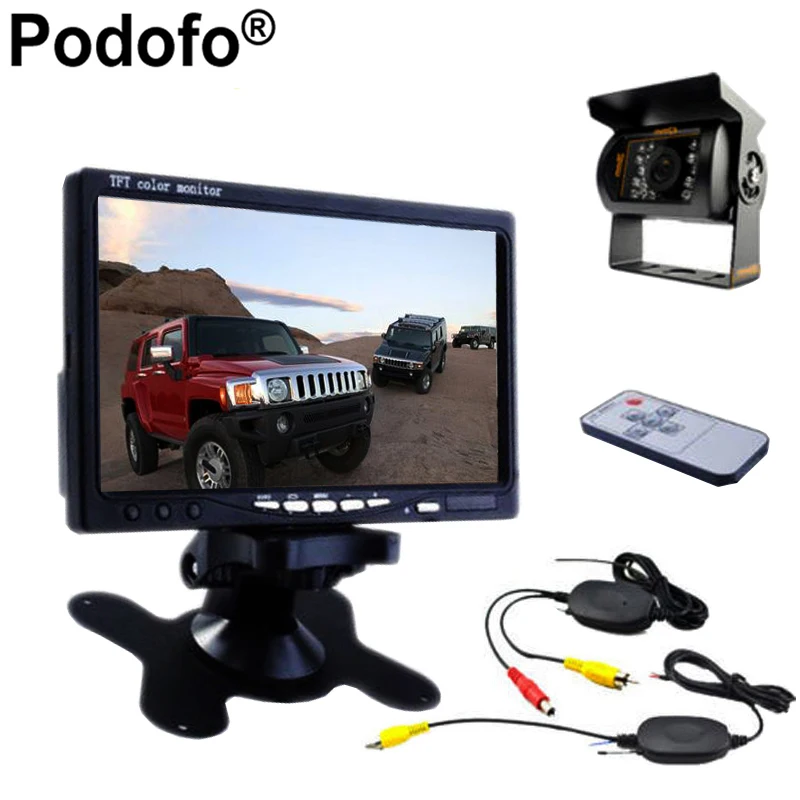

Cool Limited Podofo 12V - 24V Car Rear View Wireless Backup Camera Kit + 7" TFT LCD Monitor For Truck / Van / Caravan / Trailers / Campers

Cool Limited Podofo 12V - 24V Car Rear View Wireless Backup Camera Kit + 7" TFT LCD Monitor For Truck / Van / Caravan / Trailers / Campers smart camera Rating: 5 out of 5

Car Camera Best Choice Collections provide camera recorder,rear camera,dashboard camera,camera monitor Cool Limited Podofo 12V - 24V Car Rear View Wireless Backup Camera Kit + 7" TFT LCD Monitor For Truck / Van / Caravan / Trailers / Campers. Price at this time US $58.98/piece. Check price now to get discount! Dont waste your time. Buy Now only in podofo Store Trusted Seller Store!

PerfectPodofo 12V - 24V Car Rear View Wireless Backup Camera Kit + 7" TFT LCD Monitor For Truck / Van /Caravan / Trailers / Campers

We have 2 options:Wireless Or Wireless & Wire
Features:

• Two Night Vision Waterproof Rearview Back Up Reverse Cameras --Auto Water-resistent Camera Lens, with 18 individual Infrared (IR) LED. Effective range up to 15m.
• 2 Cameras 2 Video Inputs--A camera mounted on the front of the car and the second in the back of the car,you can view the back and front of cars
• Wired and wireless combination to guarantee safe and stable backup parking system

Note:
1)This monitor can be connected 2 cameras but one of it must be connected by wire and the other one is wireless.
2)The AV cable up to 10 meters, easy to install.

Color CMOS Camera:

• Pick-up Device: 1/3" CMOS
• TV System: PAL (CCIR), NTSC (EIA)
• Scanning System: PAL: 625 Lines; NTSC: 525 Lines, 60 Field
• Lens: 2.8 mm (Option)
• Number of Pixels: 500 (H) * 582 (V), 510 (H) * 492 (V)
• Horizontal Resolution: 420 TV Lines
• Scan Frequency: 50 Hz, 60Hz
• Electronic Shutter: 1/50 - 1/100 (sec) 1/60 - 1/100,100 (sec)
• S/N Ratio: >=48dB (AGC OFF)
• Minimun Illumination: 0.8 Lux / F1.2
• BLC: Open
• White Balance: Auto
• Gain Control (AGC): Auto
• Video Output: 1.0 Vp - p.75 Ω, BNC Connector
• Synchronous System: Internal Synchronization
• Operation Temperature: -20 Celsius - +80 Celsius
• Power Supply: DC 12V - 24V
• Focal Distance: 30mm to Infinite

7 CAR TFT LCD Monitor:

• Display Size: 7 Inch
• Resolution: 480 (W) * RGB * 234 (H)
• System: PAL & NTSC
• Power Supply: DC 9V - 35V
• Consumption: 6W
• Video: 2 - Channel Video Input, V1 / V2 Switch
• Audio: One Way Volume Input
• Net Weight: Around 740g

2.4G Wireless Color Video Transmitter and Receiver

• Receiver/transmitter frequency: 2400 ~ 2483MHz Transmission Power 10mW / CE 2mW / FCC frequency range 2400 ~ 2483.5MHz
• Operating frequency: 2414MHz / 2432MHz / 2450MHz / 2468MHz (optional)
• Power output: 100MW;
• Voltage: DC= 9V / 12V;
• Video IN/OUT: PAL/NTSC composite video signal
• Car closed condition Signal range: 34ft (open areas)
• AV OUT interface: RCA jack
• Operating temperature: -10 degrees to +50 degrees
• Storage temperature: -30 degrees to +50 degrees
• install: The camera is connected with the transmitter, the transmitter from the reversing light (mounted on the back) or brakes (mounted in front) connected to 12V power supply. Receiver directly plugged into the cigarette lighter or 12V power connection

Installation instructions:

• The unit that is labeled "2.4 G wireless color video receivers" is the signal receiver. The other unit that is labeled "2.4 G wireless color video" is the signal transmitter.
• Firstly, you should connect the camera with the transmitter. The yellow interface is for video and the red one is for power. Then connect the wire of the transmitter to the backup light of your vehicle. After theses, mount the camera on your vehicle with two screw s. There are two holes on the case of the camera.
• Secondly, connect the extension power cord to the monitor. The red wire and the black wire of the cable is used to connect the 12V/24V power source of the vehicle. The blue one is connected to the back up light. Then connect V1 cable (for video) with the receiver. The wire of the receiver connects to the reverse circuit in the auto fuse box.

Package Include:

• 1 x 7 TFT LCD Monitor (DC 9V-35V)
• 1 x Rearview Camera (DC 12V-24V)
• 1 x Mounting Plate
• 1 x Remote Controller (batteries are not included)
• 1 x Signal Rransmitter(9V/14V)
• 1 x Signal Receiver(9V/14V)
• 1 x Install Instruction
