Big Gift DIYKIT 9Inch Split QUAD Car Monitor + 4 x CCD IR Night Vision Rear View Camera Waterproof for Car Truck Bus Reversing Camera

Big Gift DIYKIT 9Inch Split QUAD Car Monitor + 4 x CCD IR Night Vision Rear View Camera Waterproof for Car Truck Bus Reversing Camera Rating: 3.5 out of 5

Car Camera Best Choice Collections provide rear camera,car camera,front camera Big Gift DIYKIT 9Inch Split QUAD Car Monitor + 4 x CCD IR Night Vision Rear View Camera Waterproof for Car Truck Bus Reversing Camera. Get Discount Now! Only US $194.75/piece at this time. Hurry buy Now before back to normal price! Normal price US $207.18 or you can Check price now. Dont waste your time. Buy Now only in DIYKIT Official Store Trusted Seller Store!

One of these items is truly very understanding of your needs for this unique goods. The item directory you get is definitely offer a recommendation for those of you who want to locate the item you want. As a product that aids your requirements to obtain convenience, of program this Limited Big Gift DIYKIT 9Inch Split QUAD Car Monitor + 4 x CCD IR Night Vision Rear View Camera Waterproof for Car Truck Bus Reversing Camera item is really interesting to get.

New Generation Wired Heavy Vehicle CCD Reversing Complete Kit

4-pin connector, one cable does it all

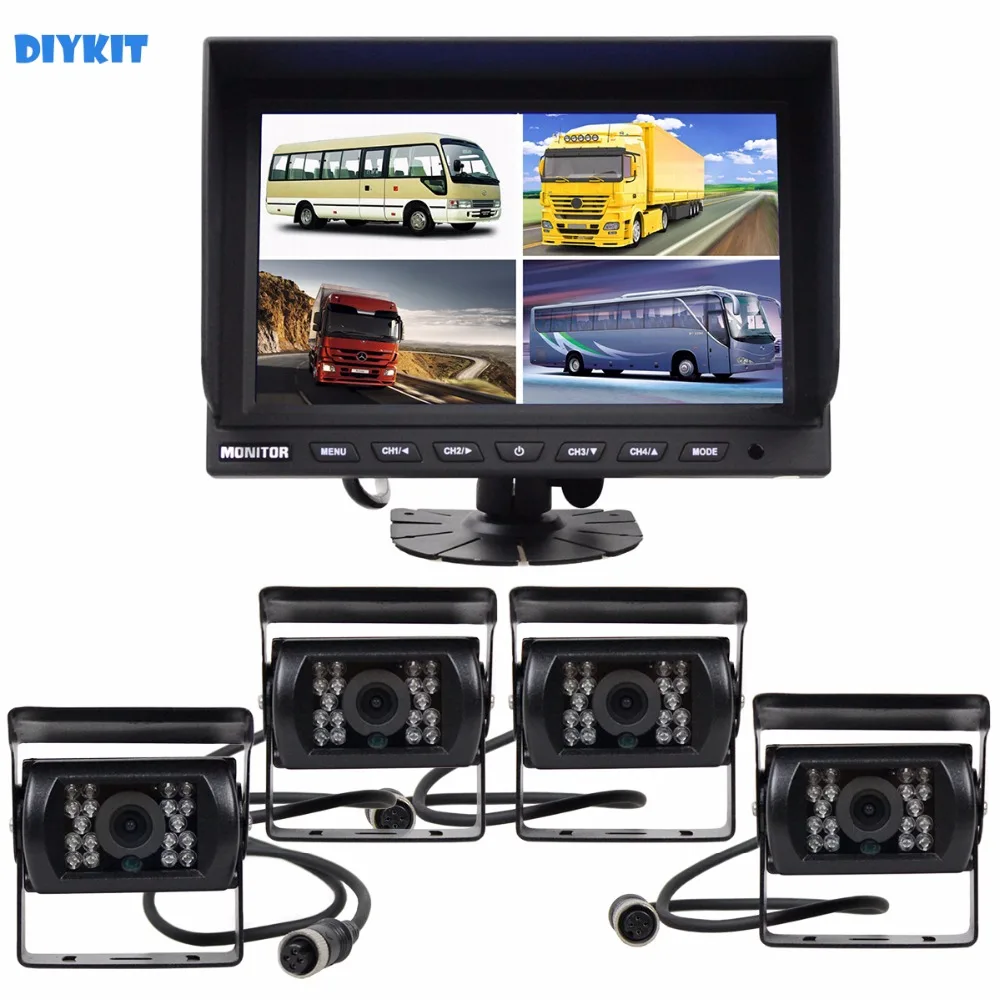

9" Quad Monitor + 4 X CCD Waterproof Metal Cover Camera
A luxury solution for car reverse & all sides
4 x CCD waterproof IR camera with wide view angle
4 x 10m length video cable for bus/truck
Quad 9" High quality TFT LCD monitor
4 x channel video inputs
Easy installation

4CH 4PIN DC12V-24V 9 Inch 4 Split Quad LCD Screen Display Color Rear View Car Monitor for Car Truck Bus Reversing Camera

This 9 inch monitor widely used in automobiles, buses, container trucks, commercial vehicles, trucks, construction vehicles, fire trucks, ships and other means of transport.

Up to four cameras can be connected to the signal, widely used in various vehicles. Suitable for cold supply voltage instability, strong anti-interference, built-in thermal-current protection.

One screen can be split into two or four screen presentation, per screen can display various video.

  • Stand security monitor
  • 16:9 wide screen
  • Power supply: DC12V-24V compatible
  • PAL / NTSC auto-switching
  • Sunshade design around
  • Remote control, OSD menu
Camera:

for Trucks/ Caravans/ Buses/ Motorhome/ Horse Trailer

The CCD image sensor outputs digital signals that has better pictures clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for longer without heating up, so you can show the clear view at all time.

  • Latest style camera with aluminium shell, shorkproof: 10G
  • 18 infrared lamp used in low light condition
  • You can easily adjust the angle of Multi-level adjust
  • Diagonal Angle 120º, Horizontal Angle 90º angle lens, 100% complete waterproof
  • Top quality camera. Easy and safe to mount

Suit for back view / side cameras

Single View / Split / Quad Image View Selectable

There are 11 different modes to display images, suit for your needs.

The difference between CCD and CMOS camera:

  • CCD lens Makes clear night vision even in a low light environment.
  • 120 degree angle lens, ensure cars rear side for effective reversing and parking operation

NOTE: We send mirror image camera as default, please inform us if you need non-mirror image camera.

Specifications:

Monitor :

  • Display size: 9 inch
  • Resolution: 800(W) x R.G.B x 480(H)
  • System: PAL / NTSC
  • Power supply: DC12V-24V
  • Consumption: 7.5W
  • Video: 4-channel video inputs
  • Net wight: 930g
  • Dimensions: 23.5*170*2.6 cm with the stand
    23.5*15.7*2.6 cm without the stand

Camera :

  • Image Type: 1/4 High Performance Color CCD
  • Horizontal Resolution:420TV Lines
  • PAL:720(H)*586(V) ,NTSC:720(H)*480(V)
  • Usable Illumination : 0Lux ( Built in 18pcs IR LEDs for Picture Support in the Dark )
  • Free viewing angle: Diagonal Angle 120º, Horizontal Angle 90º
  • Waterproof: IP66
  • Shockproof: 10G
  • Video Output:1.0Vp-p75
  • Power supply:DC12V-24V

Packing list:
