Car Camera Best Choice Collections provide rear camera,camera recorder,dashboard camera,sensor camera,front camera Hot Discount 1/3" Aptina AR0130 sensor 1.3 Megapixel 960p Low Illumination Metal Industrial Camera Usb Camera for House/car/machine Video Use. Get Discount Now! Only US $49.73/piece at this time. Hurry buy Now before back to normal price! Normal price US $54.05 or you can Check price now. Dont waste your time. Buy Now only in ELP Ailipu camera module Store Trusted Seller Store!
Have a look at our description to acquire the best items you wish. You could check out detail information concerning this goods below. Check out our Terrific Limited 70*70*65mm 720P HD Ominivision OV9712 12pcs IR LED security indoor plastic small video dome usb camera for android car DVR review to obtain the perfect goodss you prefer. You could check out detail details about this Promo Terrific Limited 70*70*65mm 720P HD Ominivision OV9712 12pcs IR LED security indoor plastic small video dome usb camera for android car DVR product listed below. item costs as well as schedule are exact as of the date/time indicated as well as are subject to transform. Any kind of cost as well as schedule info presented on this site at the time of acquisition will apply to the acquisition of this Limited Terrific Limited 70*70*65mm 720P HD Ominivision OV9712 12pcs IR LED security indoor plastic small video dome usb camera for android car DVR product.

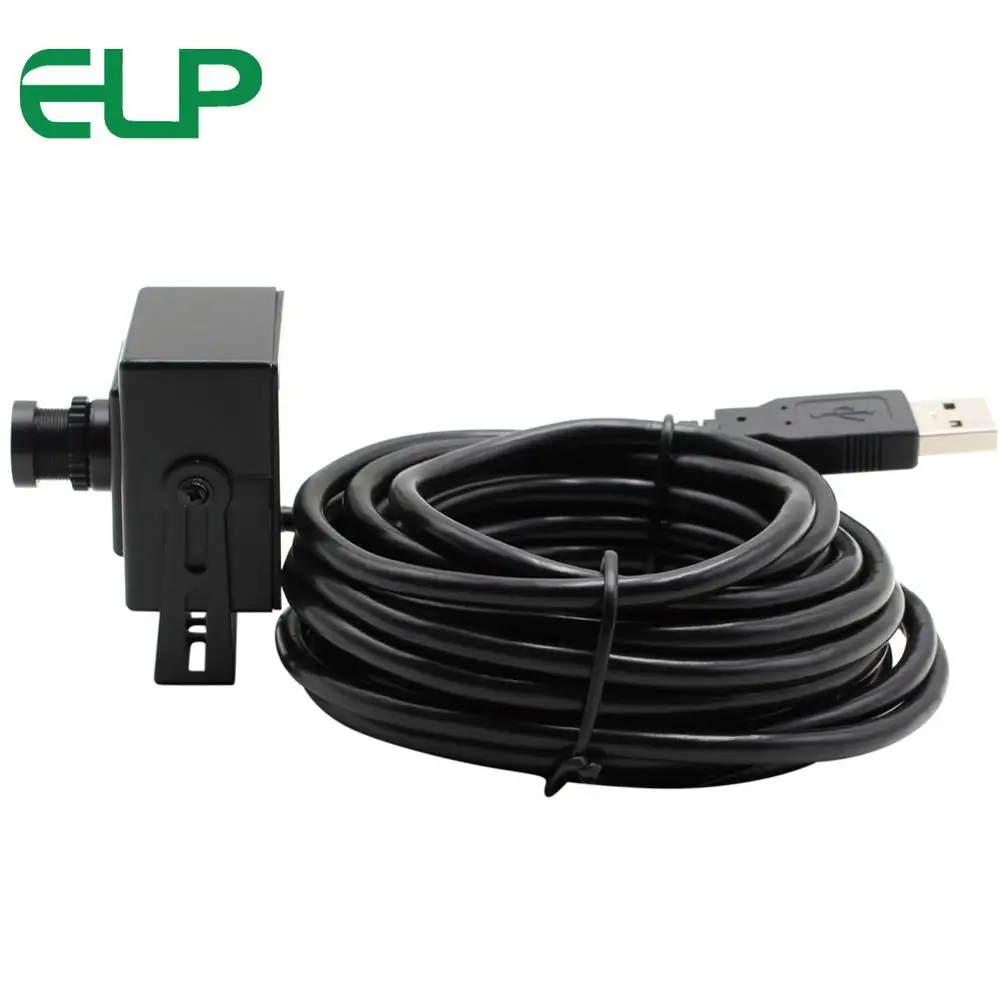

1/3" Aptina AR0130 sensor 1.3 Megapixel 960p Low Illumination Metal Industrial Camera Usb Camera for House/car/machine Video Use
The HD 960P USB CMOS board camera module(model: ELP-USB130W01M serials) is ideal for
many applications like security systems, portable video system, video phones, industrial machine
monitoring and toys. It use high quality image sensors made by Micron.
Feature
*960P resolution 1280x960P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
* Micron AR0130 9600P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*High pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
LENS: 2.1mm/2.8mm/3.6mm /6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 2m USB cable (1M/3M/5M optional)
| Model | ELP-USB130W01MT-B/W |
| Sensor | Aptina AR0130 |
| Lens Size | 1/3 inch |
| Pixel Size | 3.75um |
| Max. Resolution | 1280(H)X960(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & frame | 1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Sensitivity | 5.5V/lux-sec@550nm |
| Mini illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| OTG protocol | USB2.0 OTG |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Lens Parameter | Standard 3.6mm, optional 2.1/2.5/2.8/6mm/ FOV(D)170 Degree |
| IR CUT Connector | Support 2P-1.25mm socket |
| LED board test connector | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 100mA~160mA |
| Working current | 0~70 centigrade |
| Working temperature | -20~75 centigrade |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Inside the case
Package
Black and White
Application
Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
